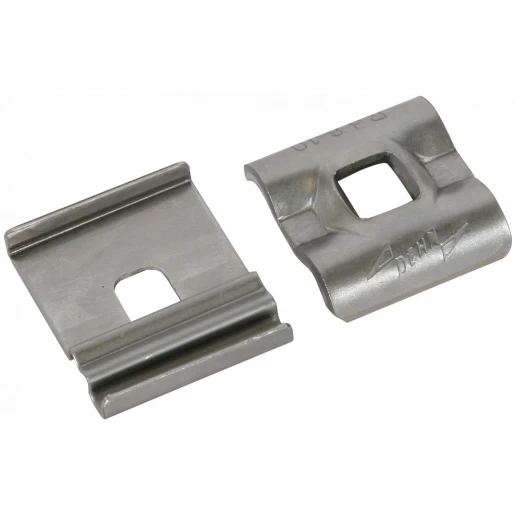

Dehn Contact plate 4-50mm² a.double cleat rd 8-10mm with square hole 9x9mm

UNI earth clamp for integrating mounting systems, e.g. of PV installations, in the functional equipotential bonding/functional earthing (black conductor possible) and lightning equipotential bonding as per DIN EN 62305-3 (VDE 0185-305-3). The StSt contact plate (intermediate element) allows different conductor materials (Cu, Al, St/tZn and StSt) to be connected to the normal mounting systems, e.g. to aluminium, without the risk of contact corrosion. Design without screw (M8), for combining with other screw systems, with double clamp, e.g. for feed-through wiring of the profiles.
