Dehn HVI Geleiderdraad 25mm² samengeslagen koper

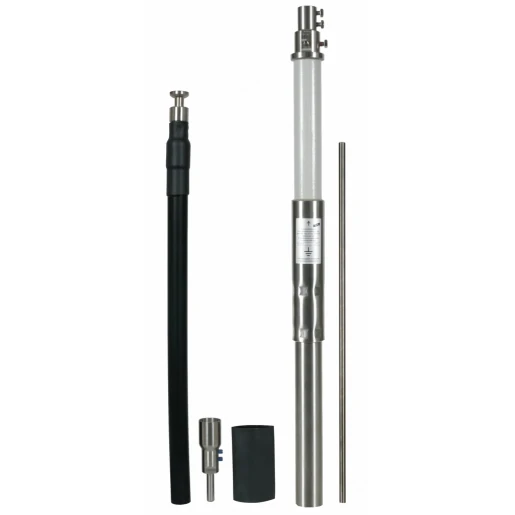

HVI power Conductor (high-voltage-resistant, insulated down conductor) inside the supporting tube for keeping the separation distance from conductive parts according to IEC/EN 62305-3 in order to prevent dangerous flashover between parts of the external lightning protection system and indoor conductive system components (electrical installation, pipes, etc.). In order to avoid creeping discharge, the HVI power Conductor has a special outer sheath which makes it possible to discharge high lightning impulse voltages to a reference potential. HVI power Conductor (black) with internal sealing end and equipotential bonding spring element inside the supporting tube (length 3500 mm) with air-termination tip (D10 mm length 1000 mm) and an earth connection element. Equivalent separation distance s = 90 cm (in air), s = 180 cm (solid material).
