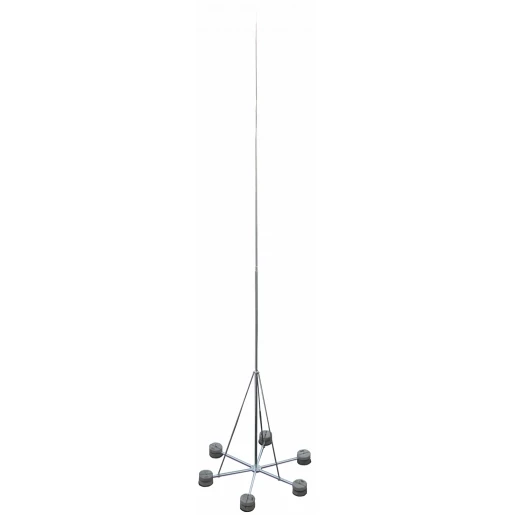

Dehn Self-supp.air-term.rod d 60/10mm l 11m al w.six-legged sup.r 1200mm

Self-supporting air-termination rod with hinged six-legged stand and braces (20 x 20 x 2 mm) made of Al, tested to DIN EN 62561-(1+2). For protecting large roof-mounted structures or for erecting on compacted ground without foundation work. Adjustable to the roof slope up to max. 10°. The air-termination rods are dimensioned to Eurocode1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)for a max. gust wind speed of 135 km/h. Version with height 11000 mm, including connection clamp for round conductor 8–10 mm.
